SPECIFICATIONS

CT4 -Specs

Weight & Balance

Basic Empty Weight  1700 lb
770 kg

Maximum Operating Weights

Max. Ramp Weight
Max. Take-Off Weight
Max. Landing Weight 2600 lb
1180 kg
Max. Useful Load
Stowage Capacity (Utility Category) 170 lb
77.1 kg
Stowage Capacity (Aerobatic) 100 lb 45 kg

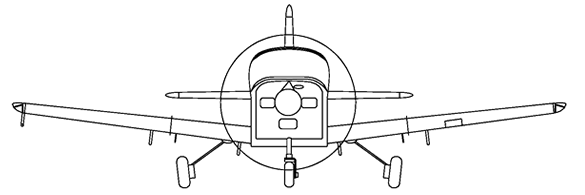

Dimensions

Wing Span 26.0 ft 7.90 m
Area - Wing Gross 129.0 ft2 12.00 m2
Area – Flap 22.60 ft2 2.00 m2
Area – Aileron 11.56 ft2 1.10 m2
Area – Elevator 16.7 ft2 1.50 m2
Area – Fin & Rudder 12.69 ft2 1.17 m2
Length Overall 23.48 ft
7.16 m
Height (ground to top of fin) 8.50 ft 2.59 m
Cabin, Inside Width 3.64 ft 1.10 m
Cabin, Inside Length 8.93 ft
2.72 m
Cabin, Inside Height 3.83 ft 1.17 m
Wheel Base 5.45 ft
1.66 m
Wheel Track 9.75 ft 2.97 m

Speeds

Va Manoeuvring Speed 144 kt

Vc Design Cruising Speed 150 kt

Vd Design Diving Speed 209 kt

Vs Stalling Speed – No Flap 60 kt

Vsf Stalling Speed – With Full Flap 45 kt

Range 520 NM
963.04 km
Maximum Fuel 322 lb 146.04 kg
Fuel Capacity 44 gal 199 L
Fuel Consumption 14 gal / hr 65 L/H
Take off Ground Roll 600 ft 183 m
Landing Run 553 ft 168 m
Rate of Climb 1830 ft/min
Aerobatic Flight (Flaps Up) +6.0g to -3.0g
Wing Loading 20.2 lb/ft2.
Power Loading (at MAUW) 8.7 lb/HP
